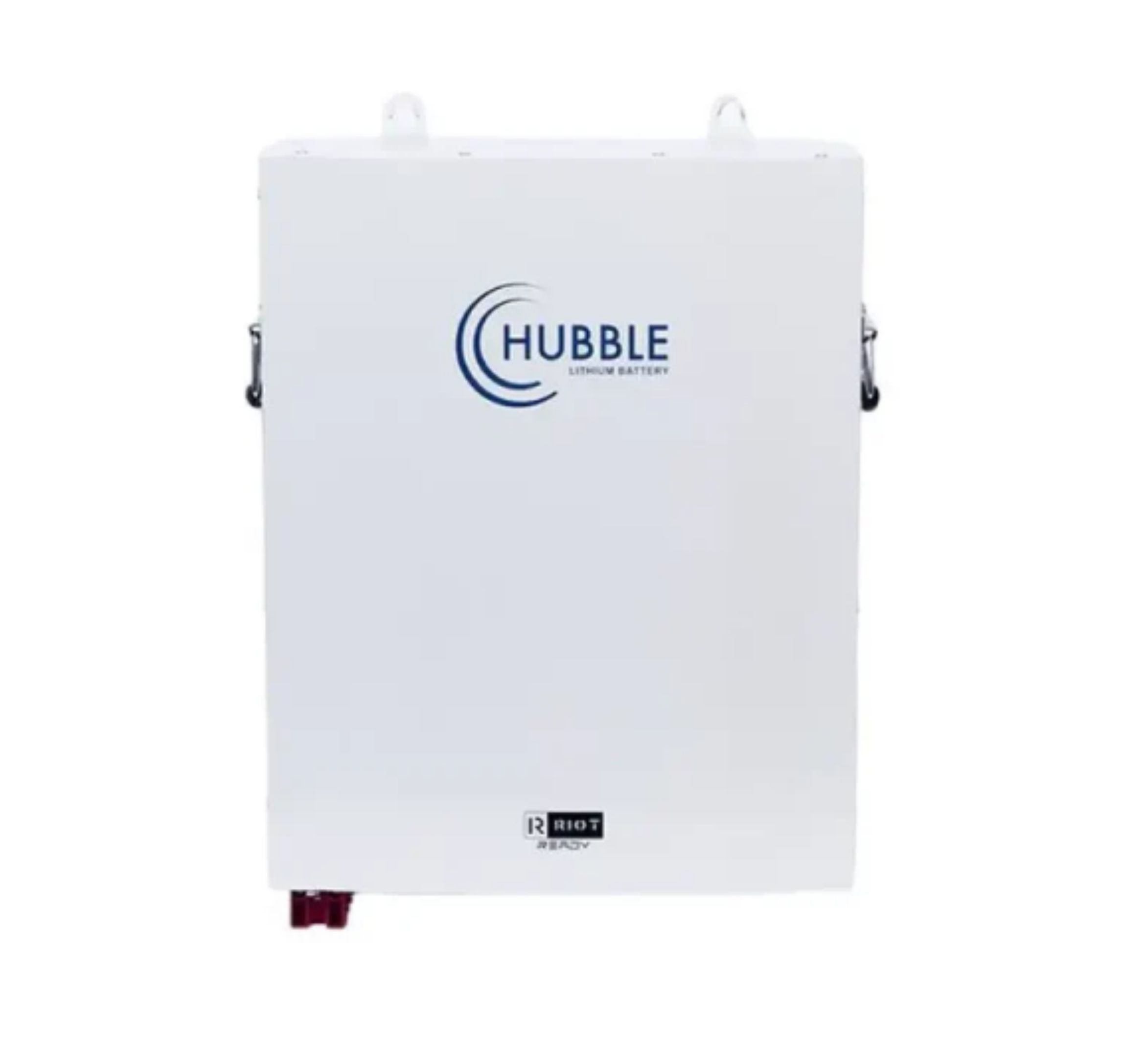

Hubble AM2 5.5kW 48v Lithium Battery
R20 012,00
Description
Hubble AM2 5.5kWh 48V Lithium Battery
The Hubble AM2 is a high-performance lithium-ion battery designed for residential and commercial energy storage applications. With a capacity of 5.5kWh and a nominal voltage of 48V, it offers reliable power backup solutions, especially in regions experiencing frequent power outages.abelasolar.com+3ledtechnologysa.co.za+3powerprovider.co.za+3
🛠️ Key Features
-
High Cycle Life: Approximately 6,000 cycles at 50% Depth of Discharge (DoD), ensuring long-term reliability.
-
Advanced Battery Management System (BMS): Provides protection against over-charge, over-discharge, and over-temperature conditions.
-
CAN Bus Communication: Enables seamless integration with leading inverter brands for efficient energy management.
-
Cloudlink Integration Ready: Supports Wi-Fi monitoring for real-time performance tracking.
-
Versatile Mounting Options: Designed for easy wall or rack mounting, offering flexibility in installation.
-
Heavy-Duty Side Handles: Facilitate straightforward handling and mounting.
-
Internal Fire Suppression System: Enhances safety during operation.sunrg.co.za+4powerhousedistributors.co.za+4powerprovider.co.za+4liteglo.co.za+5abelasolar.com+5powerprovider.co.za+5ledtechnologysa.co.za+5sunrg.co.za+5powerhousedistributors.co.za+5
📊 Technical Specifications
| Specification | Value |
|---|---|
| Rated Capacity (5HR) | 116Ah |
| Nominal Voltage | 48V |
| Design Capacity | 5.5kWh |
| Equalized Charge Voltage | 53.8V |
| Max. Continuous Charging Current | 105A |
| Max. Continuous Discharging Current | 105A |
| C Rating | 1.0C |
| Weight | Approx. 42kg |
| Dimensions (WxDxH) | 375mm x 145mm x 467mm |
| Ports | 1 x CAN-bus, 2 x Battery Link Ports |
| Cells | New Li-ion Prismatic Cells |
| Design Life | ±15 years |
| Cycle Life @ 1C | ±6,000 cycles @ 50% DOD |
| Cycle Life @ 100% DOD |
|
| Certifications | CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015 |
| Outer Package Material | White Bake Lacquer Steel Case |
| Operating Temperature | Charging: 0°C to 55°C<br>Discharging: -20°C to +55°C<br>Storage: -20°C to +55°C |
| Protection | Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting |
🔄 Compatibility
The Hubble AM2 5.5kWh 48V Lithium Battery is compatible with various inverter brands, including:powerhousedistributors.co.za+2ledtechnologysa.co.za+2abelasolar.com+2
-
Sunsynk
-
Victron Energy
-
Kodak
-
Luxpower
-
Axpert
-
Deye
-
Singoinvertsolar.co.za+9ledtechnologysa.co.za+9powerprovider.co.za+9liteglo.co.zapowerprovider.co.za
For optimal performance, ensure that the inverter’s voltage and capacity align with the battery’s specifications.
🛠️ Installation & Warranty
-
Installation: The battery can be installed either on a wall or in a shelf rack, providing flexibility based on available space and preferences.
-
Warranty: The Hubble AM2 comes with a 10-year or 3,000-cycle warranty, whichever comes first, ensuring peace of mind for the user.
